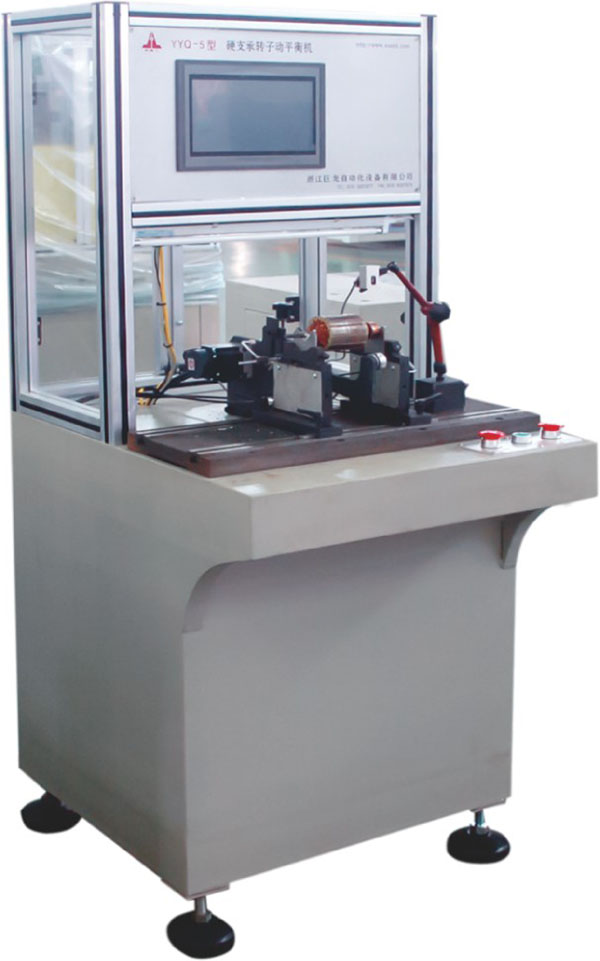

(伺服自動定位)YYQ-5S型 硬支承轉子動平衡機
YYQ-5S Hard-bearing Rotor Balance Machine
本機廣泛應用于各類微型電機轉子、葉輪、曲軸,滾筒及軸類等旋轉工件的平衡校正。本機采用觸摸屏修改技術參數,顯示直觀,采用伺服電機自動定位,可不取出工件直接加重,生產效率高,采用圈帶驅動,保證了工件的平衡質量及精度、具有裝卸方便、啟動快、工作效率高等特點。
This machine is widely used in the balance correction of various types of micro-motor rotors, impellers, crankshafts, rollers and shafts. The machine adopts the touch screen to modify the technical parameters, the display is intuitive, the servo motor is
automatically positioned, the workpiece can be directly added weight without taking out, the production efficiency is high, and the belt drive is used to ensure the balance quality and precision of the workpiece, the loading and unloading is convenient, the startup is fast, and the work efficiency is high.
技術參數/Technicai Parameters
電源電壓Supply voltage | AC220±10% 50Hz |
總功率Total power |
1kw |
轉子外徑Rotor OD |
≤Φ100mm |
轉子軸徑Rotor shaft diameter | Φ3~Φ30mm |
平衡轉速Balancing speed |
800~5000r/min |
不平衡量Unbalance |
0.3g/kg |
工件重量Workpiece weight |
≤Φ3kg |
