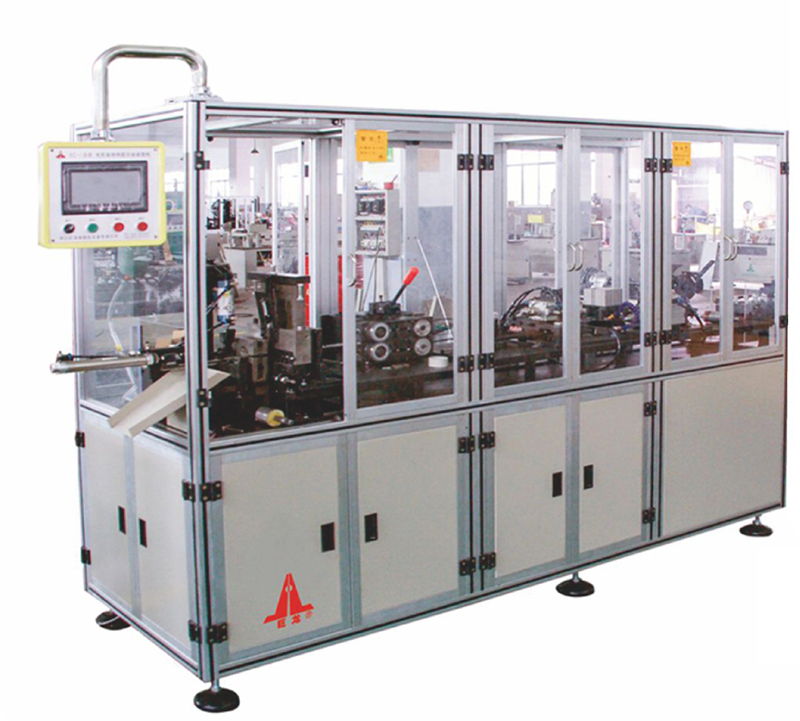

(劈拉自然成形)SC-3B型 扁線去漆皮自動成形機

上傳時間:2019-06-01


SC-3B Stater Automatic Flat Wire Shaping and Stripping Machine



本機適用于汽車起動電機、電樞繞組自動成形的專用設備,并在原有基礎上增加了線頭自動剝漆功能。采用三菱PLC控制,觸摸屏修改參數,伺服電機或氣缸定長送線,由扁線校直機構、送線機構、四面去漆皮機構、切斷機構、臂拉成形機構、產品拉出機構等組成,自動化程度高,使用簡單方便。



Suitable for automotive starter motor, armature winding automatic forming of special equipment, and on the basis of the original increase in the thread automatically stripping paint function. Mitsubishi PLC control, touch screen to modify parameters, servo motor or cylinder fixed length to send lines, by the flat line straightening agencies, send line agencies, four sides to the patent leather body, cut off institutions, arm pull forming institutions, product pull out , A high degree of automation, easy to use.


技術參數/Technicai Parameters


電源電壓Supply voltage AC220V±10% 50Hz

氣源壓力Air pressure

0.5~0.7 MPa

總功率Total power

3kw

送線長度Feeding length

180~400 mm

剝線長度Stripped length

≤15 mm

展開長度Coil length

≤280mm

線徑范圍Wire Range

≤8mm2

生產效率Productivity

15~18根/min
